Hard Jaws

Standard Specification	M08D-II
Max. machinable dia.	Φ 280mm
Main spindle speed	200~4,500 min-1
No. of turret stations	12 station turret
Rapid traverse rate	X : 24m/min Z :27m/min
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,330 x 1,865 x 1,750mm
Weight	5,000 Kg.

Standard Specification	M08DY-II
Max. machinable dia.	Φ 280 mm/ Φ 65 mm (Barstock)
Main spindle speed	200~4,500 min-1
No. of turret stations	12-station turret
Rapid traverse rate	X: 24m/min Y: 12m/min Z:27m/min
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,330 x 1,865 x 1,930mm
Weight	5,200 Kg.

Standard Specification	M08SY-II
Max. machinable dia.	Φ 280 mm
Main spindle speed	200~4,500 min-1
Back spindle speed	200~4,500 min-1
No. of turret stations	12 station turret
Rapid traverse rate	X : 24m/min Y :12m/min Z : 27m/min A : 30m/min
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,470 x 1,865 x 1,930mm
Weight	5,900 Kg.

Standard Specification	Mi06JC-II
Max. machinable dia.	Φ 220/ Φ 42 (Bar work) mm
Main spindle speed	200~4,500 min-1
No. of turret stations	200~7,000 min-1
Rapid traverse rate	(X,Z:24m/min)
Main Spindle motor	5.5/7.5 kW
Width x Depth x Height	1,165 x 1,460 x 1,600mm
Weight	2,380 Kg.

Standard Specification	Mi06JCM-II
Max. machinable dia.	Φ 220mm/Φ 42(B or work)mm
Main spindle speed	200~4,500 min-1
No. of turret stations	8 station turret
Rapid traverse rate	X,Z : 24m/min
Main Spindle motor	5.5/7.5 kW
Width x Depth x Height	1,265 x 1,560 x 1,650mm
Weight	2,230 Kg.

Standard Specification	Mi06J-II
Max. machinable dia.	Φ 260mm/Φ 51(B or work)mm
Main spindle speed	200~4,500 min-1
No. of turret stations	8 station turret
Rapid traverse rate	X: 24m/min Z : 27m/min
Main Spindle motor	5.5/7.5 kW
Width x Depth x Height	1,865 x 1,673 x 1,600mm
Weight	3,330 Kg.

Standard Specification	Mi08J-II
Max. machinable dia.	Φ 280mm
Main spindle speed	200~4,000 min-1
No. of turret stations	8 station turret
Rapid traverse rate	X : 24m/min Z :27m/min
Main Spindle motor	9/11 kW
Width x Depth x Height	1,690 x 1,570 x 1,600mm
Weight	3,600 Kg.

Standard Specification	Mi08JL5-II
Max. machinable dia.	Φ 280mm/Φ65 mm(Barstock)
Main spindle speed	200~4,000 min-1
No. of turret stations	8 station turret
Rapid traverse rate	X : 24m/min Z :27m/min
Main Spindle motor	9/11 kW
Width x Depth x Height	2,170 x 1,778 x 1,600mm
Weight	3,430 Kg.

Standard Specification	TMA 8J
Linear Scale	-
Chuck size of main work spindle	8”
Chuck size of back work spindle	6”
Main work spindle speed	5,000 min-1
Back work spindle speed	5,000 min-1
B-axis index angle	-15°~195°
B-axis least index angle	0.001° (positioning)
B-axis index angle by coupling	5°
Tool storage capacity	30
Width x Depth x Height	3,700 x 2,126 x 2,250 mm
Weight	8,500 Kg.

DESCRIPTION		PL 500AW 20″ Wheel
Travel	X/Z axis travel mm	360/680
Travel	X/Z rapid traverse rate m/min	20/24
Chuck	Chuck size inch	20"
Capacity	Swing over bed mm	830
	Recom. turning diameter mm	508(20" Wheel)
	Swing over cross slide mm	720
	Max. turning diameter mm	670
	Maximum turning length mm	710
Spindle	Spindle speed rpm	3000
	Spindle nose ASA	A2-8
	Spindle bore diameter mm	90
	Spindle motor (Cont./Max) kW	37/30
Travels	feed motor(X/Z) kW	4/7
Turret	Number of tool stations ea	12
	Turret index time(next station swivel time) sec	0.25
	Shank size for square tool mm	32x32
	Shank diameter for boring bar mm	60
Machine	Req. floor space(L×W×H) mm	3,845(5,056)×2,090
	Machine weight kg	2,195
	Coolant tank capacity Liter	7700
Electric power supply	kVA/V	60
Controller		Fanuc Oi-TF

Standard Specification	B0125-III
Max. machinable dia.	Φ 12mm
Main spindle speed	200~12,000 min-1
Back spindle speed	200～12,000min-1
Total number of tools	21
Rapid traverse rate	32m/min (X1:24m/min)
Main Spindle motor	1.5/2.2 kW
Width x Depth x Height	1,655 x 1,135 x 1,700mm
Weight	2,000 Kg.

Standard Specification	B0203-III
Max. machinable dia.	Φ 20mm
Main spindle speed	200~10,000 min-1
Back spindle speed	-
Total number of tools	13
Rapid traverse rate	32m/min (X1:24m/min
Main Spindle motor	2.2/3.7 kW
Width x Depth x Height	1,590 x 1,125 x 1,700mm
Weight	1,500 Kg.

Standard Specification	B0204-III
Max. machinable dia.	Φ 20mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~12,000 min-1
Total number of tools	17
Rapid traverse rate	32m/min (X1:24m/min)
Main Spindle motor	2.2/3.7 kW
Width x Depth x Height	1,655 x 1,135 x 1,700mm
Weight	1,950 Kg.

Standard Specification	B0205-III
Max. machinable dia.	Φ 20mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~12,000 min-1
Total number of tools	21
Rapid traverse rate	32m/min (X1:24m/min)
Main Spindle motor	2.2/3.7 kW
Width x Depth x Height	1,655 x 1,135 x 1,700mm
Weight	2,000 Kg.

Standard Specification	B0206-III
Max. machinable dia.	Φ 20mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~12,000 min-1
Total number of tools	25
Rapid traverse rate	32m/min (X1:24m/min. Y2:15m/min))
Main Spindle motor	2.2/3.7 kW
Width x Depth x Height	1,655 x 1,135 x 1,700mm
Weight	2,050 Kg.

Standard Specification	B0265-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~10,000 min-1
Total number of tools	27
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	5
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4,000 Kg.

Standard Specification	B0265V-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~10,000 min-1
Total number of tools	22
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	5
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4,000 Kg.

Standard Specification	B0265-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~10,000 min-1
Total number of tools	31
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	6
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4,000 Kg.

Standard Specification	B0265V-III
Max. machinable dia.	Φ 26mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~10,000 min-1
Total number of tools	26
Rapid traverse rate	35m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Number of axis	6
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Weight	4,000 Kg.

Standard Specification	B0325- III
Max. machinable dia.	Φ 32mm
Main spindle speed	200~8,000 min-1
Back spindle speed	200~8,000 min-1
Total number of tools	27
Rapid traverse rate	32m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Number of axis	5
Weight	4,000 Kg.

Standard Specification	B0325V-III
Max. machinable dia.	Φ 32mm
Main spindle speed	200~8,000 min-1
Back spindle speed	200~8,000 min-1
Total number of tools	22
Rapid traverse rate	32m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Number of axis	5
Weight	4,000 Kg.

Standard Specification	B0326- III
Max. machinable dia.	Φ 32mm
Main spindle speed	200~8,000 min-1
Back spindle speed	200~8,000 min-1
Total number of tools	31
Rapid traverse rate	32m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Number of axis	6
Weight	4,000 Kg.

Standard Specification	B0326V-III
Max. machinable dia.	Φ 32mm
Main spindle speed	200~8,000 min-1
Back spindle speed	200~8,000 min-1
Total number of tools	26
Rapid traverse rate	32m/min (X1,Y1,Y2:24m/min) (Y2: Only for 6-axis machine)
Main Spindle motor	3.7/5.5 kW
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Number of axis	6
Weight	4,000 Kg.

Standard Specification	B0385-III
Max. machinable dia.	Φ 32mm
Main spindle speed	200~6,000 min-1
Back spindle speed	200~7,000 min-1
Total number of tools	26
Rapid traverse rate	32m/min (X1,Y1:24m/min)
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,770 x 1,515 x 2,050mm
Number of axis	5
Weight	4,850 Kg.

Standard Specification	B0385V-III
Max. machinable dia.	Φ 38mm
Main spindle speed	200~6,000 min-1
Back spindle speed	200~7,000 min-1
Total number of tools	21
Rapid traverse rate	32m/min (X1,Y1:24m/min)
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,770 x 1,515 x 2,050mm
Weight	4,850 Kg.

Standard Specification	B0386-III
Max. machinable dia.	Φ 32mm
Main spindle speed	200~6,000 min-1
Back spindle speed	200~7,000 min-1
Total number of tools	29
Rapid traverse rate	32m/min (X1,Y1,Y2:24m/min)
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,630 x 1,270 x 1,970mm
Number of axis	6
Weight	4,850 Kg.

Standard Specification	B0385L-III
Max. machinable dia.	Φ 38mm
Main spindle speed	200~6,000 min-1
Back spindle speed	200~7,000 min-1
Total number of tools	26
Rapid traverse rate	32m/min (X1,Y1:24m/min)
Main Spindle motor	7.5/11 kW
Width x Depth x Height	2,770 x 1,515 x 2,050mm
Weight	4,850 Kg.

Standard Specification	S205-II
Max. machinable dia.	Φ 20mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~12,000 min-1
Total number of tools	24
Rapid traverse rate	Z1,Z2,X2:32m/min, X1,Y1:24m/min, Y2:15m/min(Only for S206)
Main Spindle motor	2.2/3.7 kW
Number of axis	5
Width x Depth x Height	2,110 x 1,200 x 1,885mm
Weight	3,200 Kg.

Standard Specification	S206-II
Max. machinable dia.	Φ 20mm
Main spindle speed	200~10,000 min-1
Back spindle speed	200~12,000 min-1
Total number of tools	28
Rapid traverse rate	Z1,Z2,X2:32m/min, X1,Y1:24m/min, Y2:15m/min(Only for S206)
Main Spindle motor	2.2/3.7 kW
Number of axis	6
Width x Depth x Height	2,110 x 1,200 x 1,885mm
Weight	3,300 Kg.

Standard Specification	VA3
X/Y/Z/ axis stroke	400x300x250 mm
Table size	840 x 380 mm
Max. load on table	150 Kg.
Spindle speed	200~20,000 min-1
Spindle motor	9.0/3.7 kW
Tool shank	JIS B 6339-1998 BT30
Retention knob	MAS403-1982 P30T-1
Width x Depth x Height	1,300 x 2,270 x 2,310 mm
Weight	3,300 Kg.

Standard Specification	VA4
X/Y/Z/ axis stroke	720x510x460 mm
Table size	850 x 510 mm
Max. load on table	800 Kg.
Spindle speed	100~10,000 min-1
Spindle motor	11/15 kW
Tool shank	BIG PLUS BBT 40
Retention knob	MAS4003-1982 P40T-1
Width x Depth x Height	2,403 x 2,763 x 2,618 mm
Weight	5,500 Kg.

SIZE (in mm)	GR “0”
250 x 250	3.5
300 x 300	3.5
400 x 400	4.5
630x 400	5.0
630 x 630 x 80	5.0
1000 x 630 x 150	6.0
1000 x 1000 x 150	7.0
1200 x 900 x 150	7.0
1600 x 1000 x 200	8.0
2000 x 1000 x 200	9.5

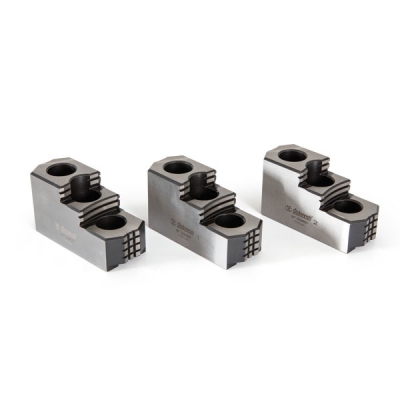

Hard Jaws

Hard Jaws

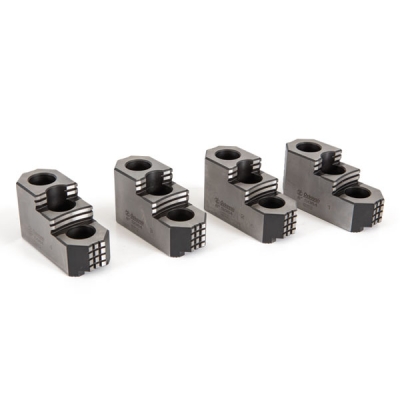

Hard Jaws 4 Type

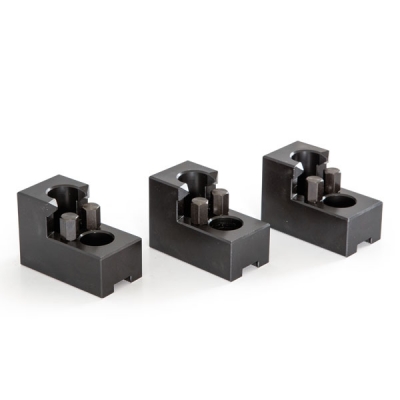

Claw Hard Jaws

Claw Hard Jaws
